FLIPSCREEN® Screening Buckets - Skidsteer/Telehandlers

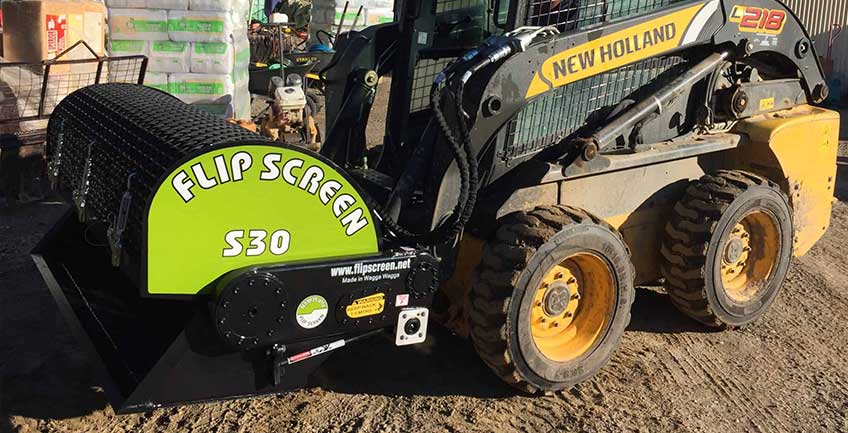

Flipscreen S30 (1.5-2.5 ton carriers)
SKIDSTEER & TELEHANDLER
Width: 69″
Height: 31″
Scoop Size: 0.39 yard
Capacity: 1.17 yard
Required Flow: 9.9 GPM
Pressure: 2248 psi
Screen Area: 22.6 sq ft.
Weight: 765 lbs
(Estimated screening rate of topsoil & rock with 2″ Screen is 47 yards/hour)
RESERVE FOR MARCH 2027!
Starting: $Contact for Pricing
Click Image for More Info

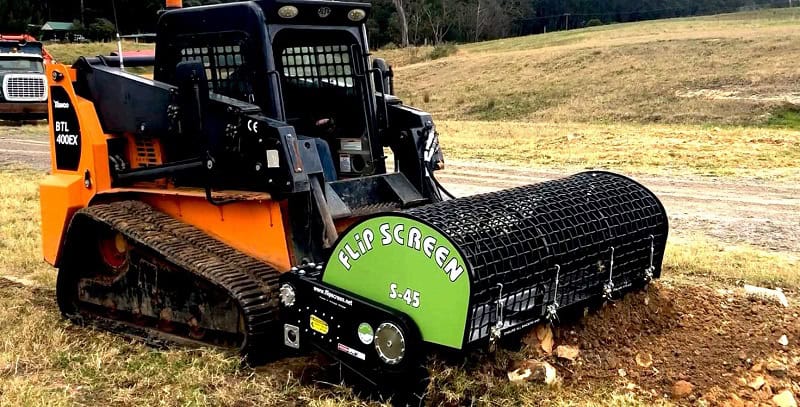

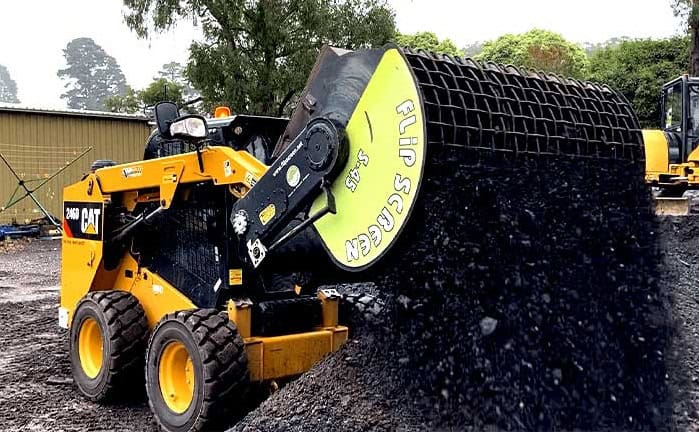

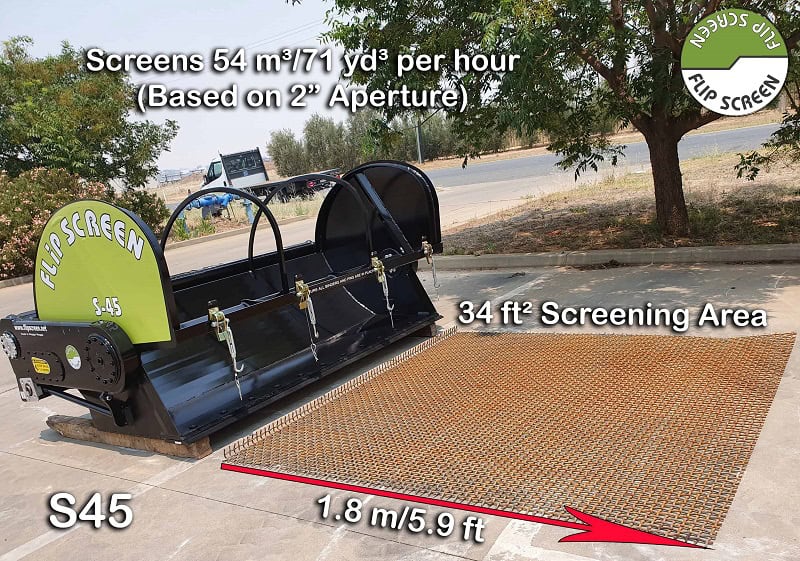

Flipscreen S45 (3-4 ton carriers)
SKIDSTEER & TELEHANDLER
Width: 80″
Height: 39″
Bucket Opening: 73″ x 16″
Scoop Size: 0.59 yard
Capacity: 1.77 yard
Required Flow: 14.3 GPM
Pressure: 2248 psi
Screen Area: 34 sq ft.
Weight: 1274 lbs
(Estimated screening rate of topsoil & rock with 2″ Screen is 71 yards/hour)
RESERVE FOR MARCH 2027!
Starting: $Contact for Pricing
Click Image for More Info
Flipscreen S65 (5-9ton carriers)
SKIDSTEER & TELEHANDLER
Width: 91″
Height: 59″
Bucket Opening: 81″ x 17″
Scoop Size: 0.85 yard
Capacity: 2.90 yard
Required Flow: 15.4 GPM
Pressure: 2248 psi
Screen Area: 44 sq ft.
Weight: 1786 lbs
(Estimated screening rate of topsoil & rock with 2″ Screen is 94 yards/hour)
RESERVE FOR MARCH 2027!
Starting: $Contact for Pricing
Click Image for More Info

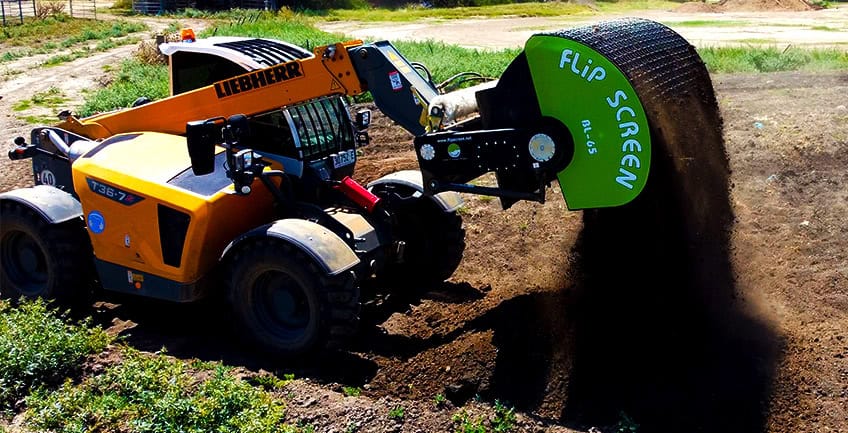

Flipscreen BL95/BL80 (8-12 ton carriers)
TELEHANDLERS
Width: 92″
Height: 60″
Bucket Opening: 84″ x 22″
Scoop Size: 1.00 yard
Capacity: 3.00 yard
Required Flow: 18 GPM
Pressure: 2900 psi
Screen Area: 36 sq ft.
Weight: 3329 lbs
(Estimated screening rate of topsoil & rock with 2″ Screen is 120 yards/hour)
RESERVE FOR MARCH 2027!
Starting: $Contact for Pricing
Click Image for More Info

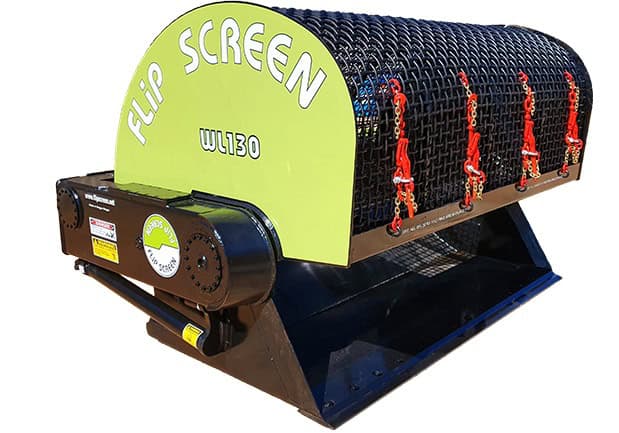

Flipscreen WL130 (11-16 ton carriers)
TELEHANDLERS
Width: 97″
Height: 63″
Bucket Opening: 84″ x 26″
Scoop Size: 1.7 yard
Capacity: 5.10 yard
Required Flow: 32 GPM
Pressure: 2467 psi
Screen Area: 61 sq ft.
Weight: 4057 lbs
(Estimated screening rate of topsoil & rock with 2″ Screen is 204 yards/hour)
RESERVE FOR MARCH 2027!
Starting: $Contact for Pricing
Click Image for More Info
